Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen

Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen

  • Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen
  • Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen
  • Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen
  • Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen
Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen
Dettagli:
Luogo di origine: Cina, Guang Dong.
Marca: Shichuangxinke
Certificazione: CE RoHS FCC CCC TUV UL
Model Number: SCXK-P8
Termini di pagamento e spedizione:
Minimum Order Quantity: 1 square meters
Prezzo: USD1900-2100 per square meters
Imballaggi particolari: Scatola di legno, scatola di legno, cartone, dipende da te.
Tempi di consegna: 7-10 giorni lavorativi dal ricevimento del pagamento del deposito
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sqm per month
Contatto
Descrizione di prodotto dettagliata
Resolution/mm: 8 Pixel Density: 15625
Scanning Mode: 1/4 scanning Module size: 256*128MM
Control system: LSN Working voltage: DC5V
Garanzia: 3-5 anni Certificates: CE RoHS FCC CCC UL
Applicazione: Stadio, palcoscenico, aeroporto, centro commerciale, pubblicità stradale



Rental Stage Background P8 IP65 LED Display Indoor Outdoor Wall Event HD Scaning Mode1/4



Description:



Quick Details:

1) Video display for advertisement
2) Live broadcast for news, sport, concert

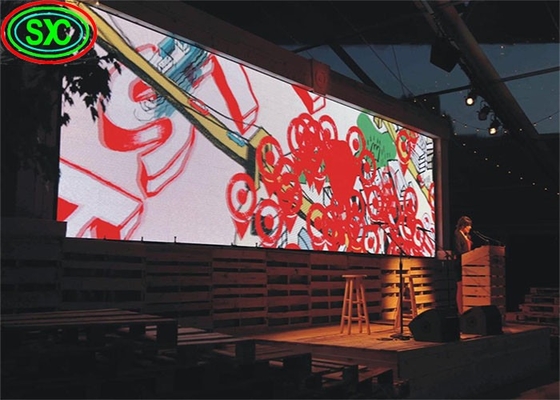

3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video



Products function introduction:

1) High brightness, adjustable, can meet customer requirements according to the environment.
2) Optimal uniformity, well solves the mosaic problem, with excellent light consistency
3) For images and texts, it has a clear, delicate and real display effect LED curtain screen
4) Large viewing angle, up to 110 degrees horizontally and 60 degrees vertically
5) Each LED light can be repaired, so the maintenance cost is low and easy to repair.
6) It is usually suitable for sports, advertising, banks, stock exchanges, stations, ports, indoor P6 display screens, etc.



Our service:

1. Your inquiry about our products or prices will be responded within 24 hours.
2. Well-trained and experienced staff will answer all your inquiries in fluent English.
3. OEM and ODM, any customized screen you want, we can help you design and put into the product.
4. Provide distributors for your unique design and some of our current models.
5. Protect your sales area, design ideas and all private information.





FAQ:

Q1: How to help client choose suitable display?

A1: (1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control



Q2: What about your technical support?

A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.



Q3: What's the control system?

A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.



Q4: What's the warranty of your LED displays?

A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.



Q5: What's your payment method?

A5: Our payment method is T/T 30% as deposit, balancing before delivery.



Specifications



outdoor SMD P8
Resolution/mm 8
Pixel configuration 1R1G1B
Pixel density/pixels/m² 15625/m²
Module resolution 256x128
Module size/mm 512x512MM
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/4 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%







After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.



Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 0

Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 1

Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 2

Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 3

Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 4Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 5Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 6



Info about company:



Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.

We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc. The basic LED cabinet are easier for customers' installation and maintenance to meet the market requirement.

We are also renowned for building custom LED Display that will meet your unique and specific need. More importantly, we are committed to providing quality products at competitive prices and superior customer services. With the quality management sustem ISO9001, the strong R&D and manufacturing group, SCXK became one of the leading companies or LED display industry in Shenzhen.



Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 7

Rental Screen Customizable Scan Mode 1/4 P8 IP65 Stage Background LED Screen 8



Welcome to visit our website and inquire us more info,waiting for you all the time!!!
