Elettronica Co., srl di Shenzhen Shichuangxinke
il professionista fa la buona qualità, fornisce il prodotto perfetto ed il servizio per ogni cliente.
 |
| Luogo di origine: | Cina (continente) |
| Marca: | SCX |
| Certificazione: | CE,ISO,FCC,UL |
| Model Number: | SCX-P3 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Prezzo: | 699USD/sqm |
| Packaging Details: | Carton,wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Pixels: | 3mm | Usage: | Indoor |
|---|---|---|---|
| Screen dimension: | Customized | Colore del chip del tubo: | Colore completo |
| Display function: | Video | Brillantezza: | 900nits |
| Warranty: | 2-3 Years | Durata di vita: | 100000 ore |
| Scan mode: | 1/32 scan | Cabinet material: | Iron or aluminum |
| Evidenziare: | Display video HD LED,Display video a LED P3 per interni |
||

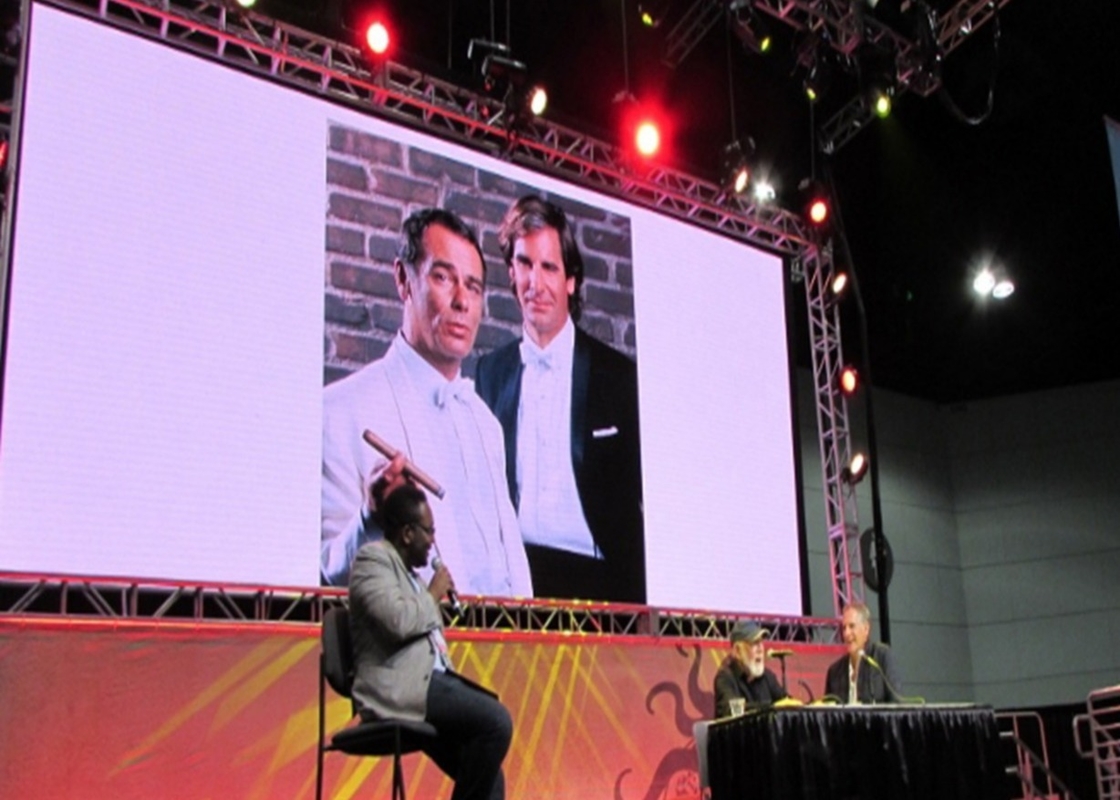

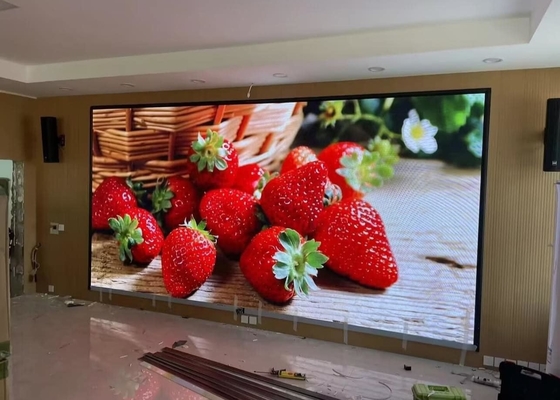

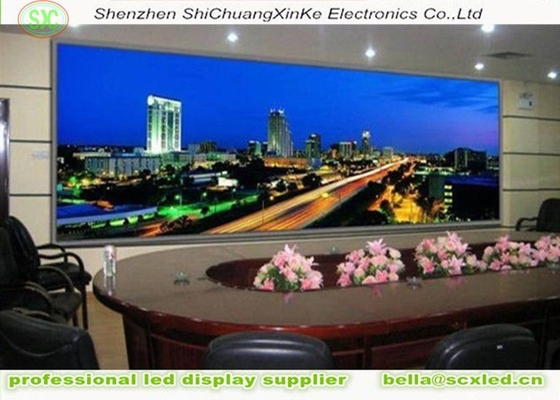

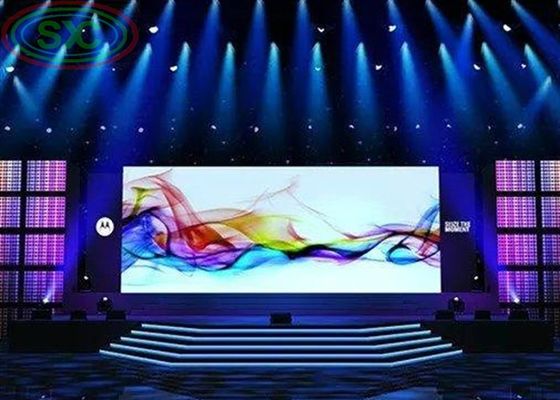

Indoor P3 Full Color LED Display 3840HZ Panels Movie Screens Large Size
Pre-sale service:
1. Reply to inquiries within 24 hours.
2. Provide market research and forecasts for customers.
3. Provide professional solutions according to customer requirements.
4. Provide samples and all documents according to customer requirements.
5. Other services such as factory visits, etc.
After-sale service:
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
Specifications:
| SMD P3 | |||||
| Resolution/mm | 3 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 111111dots/square meter | ||||
| Module resolution | 64x64mm | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 3-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 900cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | 3840Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
Q1: How to help client choose suitable display?
A1:
(1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
