Place of Origin: | China |
Marca: | SCXK |
Certificazione: | CE,ROHS ,FCC,UL |
Model Number: | SCXK-P10 |
Minimum Order Quantity: | 1sqm can be available |
---|---|
Prezzo: | Negoziabile |
Packaging Details: | the led display can be packaged with wooden box,paper box,flight case |
Delivery Time: | 5-8days |
Payment Terms: | L/C, T/T, Western Union |
Refresh Rate: | 2500HZ/S | pixel density: | 10000dots/sqm |
---|---|---|---|
cabinet size: | 960mm x 960mm | Display Color: | 16.7million |
control system: | 3G ,U-DISK ,wifi | Power Supply: | Series connection |
Control method: | Synchronization & Asynchronization | LED Standard: | Real Pixel(1R1G1B) |
Protection Level: | IP65 |
Fixing usage outdoor P10 LED Billboards , 960x960mm iron and steel cainet 3 years warranty
product description:
With the support of advanced technology and professional team, we have introduced world-class standard LED displays with beautiful images, long-lasting stability, low power consumption, wide viewing angle and high protection level.... Fully automated production to control our high quality, best color . Consistency for better performance.
-Energy saving, low power consumption, long life up to 100,000 hours (about 10 years) .
-We guarantee that the products supplied are new, complete and unused.
-Unique exhaust fan design, good heat dissipation and waterproof.
From material - production - testing - packaging - shipment, Shichuangxinke full quality control
Specificities:
1.Automatic brightness control,super processing ability,strong colour restoration.
2.Support various interfaces and signal sources.
3.Advanced digital control technology, excellent effect.
4.High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5.Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
The outdoor P10 full color led display parameter as follows.
Product Name | smd outdoor Full Color LED Display | |||||||
Model No | SCXK-P10 | |||||||
Physical Pixel Pitch | 10mm | |||||||
Pixel Type | Real Pixel(1R1G1B) | |||||||
Red LED Lamp | Optotech | |||||||
Green&Blue LED Lamp | Hcsemitek | |||||||
Module Size | 320mmx160mm | |||||||
Cabinet Size | 960mmx960mm | |||||||
Module numbers per cabinet | 3pcsx6pcs=18pcs |
|||||||
Cabinet numbers | 1pcsx1pcs=1pcs | |||||||
Module Resolution | 96x96 | |||||||
Pixel Density | 15625dots/sqm | |||||||
Drive IC | MBI5124 and MBI5024 | |||||||
Best Viewing Distance | 10m------200m | |||||||
Drive Mode | 1/4 scan |
Wide application field :

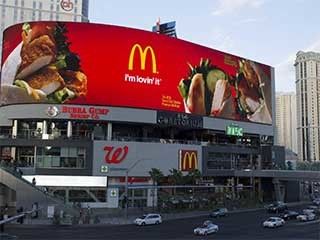

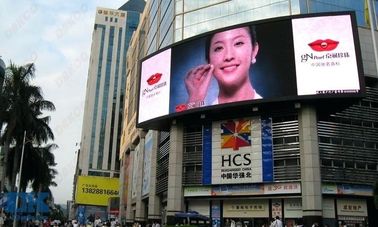

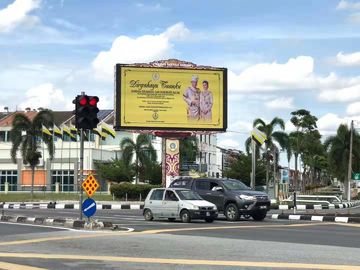

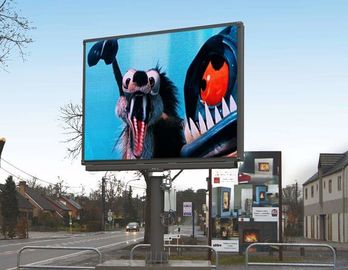

Widely used in Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.
We still have some other style led display.The parameter as follows.
the outdoor full color led display module ( smd and dip are available) | |||||
Number | Drive mode | Moduel size | Resolution | Led standard | pixel density |
P4 | 1/8 scan | 256x128mm | 64x32 | 3in1 | 62500 |
p4.81 | 1/13scan | 250x250mm | 52x52 | 3in1 | 43222 |
p5 | 1/8 scan | 160x160mm | 32x32 | 3in1 | 40000 |
P6 | 1/8 scan | 192x192mm | 32x32 | 3in1 | 27778 |
P8 | 1/4scan | 256x128mm | 32x16 | 3in1 | 15625 |
P10 | 1/4scan | 160x160mm | 16x16 | 3in1 | 10000 |
P12 | 1/4scan | 192x192mm | 16x16 | 3in1 | 6944 |
P16 | static scan | 256x256mm | 16x16 | 3in1 | 3906 |
P20 | static scan | 320x160mm | 16x8 | 3in1 | 2500 |
P25 | static scan | 200x200mm | 8x8 | 3in1 | 1600 |
P31.25 | static scan | 250x250mm | 8x8 | 3in1 | 1024 |
the indoor full color led display module( indoor usage only) | |||||
Number | drive mode | module size | resolution | led standard | pixel density |
p1.923 | 1/32scan | 246x246mm | 128x128 | 3 in 1 | 270420 |
p2 | 1/32scan | 128x64mm | 64x32 | 3 in 1 | 250000 |
p2.5 | 1/16scan | 160x160mm | 64x64 | 3 in 1 | 160000 |
p3 | 1/16scan | 192x192mm | 64x64 | 3 in 1 | 111111 |
p3.91 | 1/16scan | 250x250mm | 64x64 | 3 in 1 | 65410 |
p4 | 1/16scan | 256x128mm | 64x32 | 3 in 1 | 62500 |
p5 | 1/16/scan | 320x160mm | 64x32 | 3 in 1 | 40000 |
p6 | 1/16scan | 384x192mm | 64x32 | 3 in 1 | 27778 |
p7.62 | 1/8 scan | 244x244mm | 32x16 | 3 in 1 | 17222 |
p10 | 1/8 scan | 320x160mm | 32x16 | 3in 1 | 10000 |
Q: What are the differences between the outdoor ,indoor, semi-outdoor LED display ?
A1: Brightness: Indoor LED displays are much less bright than outdoor and semi-outdoor LED displays. Outdoor LED displays and semi-outdoor LED displays are close in brightness.
A2: Waterproof level: indoor and semi-outdoor LED display are not waterproof.
Q: What is the DIP? What is the SMD?
A1: DIP is a package technology which make the LED get through the PCB and then use the tin welding .
A2: SMD is a package technology which weld the LED on the surface of PCB .
Q: What is the difference between the SMD and the DIP?
A1: Brightness: The DIP modules are brighter than the SMD
A2: Viewing Angle: SMD modules have a larger viewing angle than DIPs.
Pixel Density: The pixel density of SMD is much higher than that of DIP.
Q: What is a pixel and pixel pitch?
A: The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.Pixel pitch refers to the center of the distance between two adjacent pixels.
Q. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
