| Luogo di origine: | La CINA |
| Marca: | SCXK |
| Certificazione: | CE/ROHS/FCC/ISO/UL |
| Numero di modello: | P3 |
| Quantità di ordine minimo: | 3 |
|---|---|
| Prezzo: | negotiation |
| Imballaggi particolari: | caso di carton+wooden o caso di volo. |
| Tempi di consegna: | 5-8 giorni lavorativi |
| Termini di pagamento: | T/T, Western Union |
| Capacità di alimentazione: | 5000sqm un il mese |
| Applicazione:: | commercio | Colore:: | Colore pieno |
|---|---|---|---|
| Dimensione del pannello:: | 576x1920x75mm | Nome di prodotto:: | P3Indoor ha condotto l'esposizione del manifesto |
| Luminosità:: | 1200cd/sqm | Densità del pixel:: | 160000dots/sqm |
| Dimensione del modulo:: | 192x192mm | La velocità di rinfrescamento:: | 1920 hertz |
| Modo dell'azionamento:: | 1/32 di ricerca | Temperatura di lavoro:: | -20 grado - 60 gradi |
| Angolo di visione:: | 140 /140 | ||
| Evidenziare: | 1200cd/Sqm manifesto portatile di pubblicità LED,P3 manifesto portatile di pubblicità LED,Esposizione del manifesto di isolato SMD2121 |
||
Feature

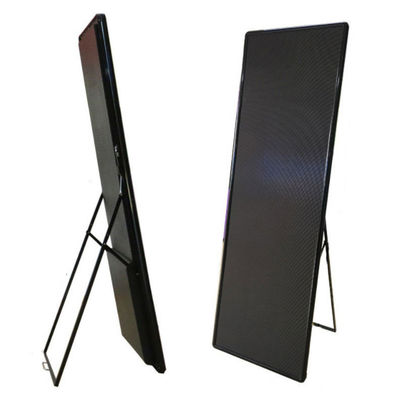

1) Super light, each LED poster screen weighs 45KG.
2) Easy to install and convenient to move it.
3) Front and rear maintenance.
4) 2- 6pcs LED posters can be joined together and produced a larger complete picture.
5) It can be controlled by 3G,4G, WIFI, USB and HDMI.
6) It achieves to send video or pictures by intelligent terminal APP.
7) Support floor standing, base standing, wall-mounted and hanging installation.
Specification
| Pixel Pitch | 2.5mm |
| Pixel Density | 160000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 320mm x 160mm |
| Module Resolution | 128dots x 64dots |
| Drive Mode | 1/32 Scan |
| Drive IC | ICN2153 |
| Brightness | 1200 cd/sqm, adjustable by software |
| Viewing Distance | 2m-50m |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 850W/sqm |
| Ave. Power Consumption | 350W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
Specifications
| Item | Parameter | Item | Parameter |
| Model Number | HBY- S300 | Module Size | 192mm*192mm |
| Pixel Pitch | 3mm | Pixels Density | 111111dots/m2 |
| Pixel Configuration | 1R1G1B | LED Package Mode | SMD 3 IN 1 lamp ZJLead-LED |
| Pixel Resolution | 64dots(W)*64dots(H) | Max Power | 25W |
| Module Thickness | 17mm | Weight | 35kg |
| Drive Type | Constant current | Scan Mode | 1/32 scan |
| Brightness of White Balance00 | ≥1000 nit | Port Type | HUB75E |
